Material: zinc alloy
Color: Black
Measurements:

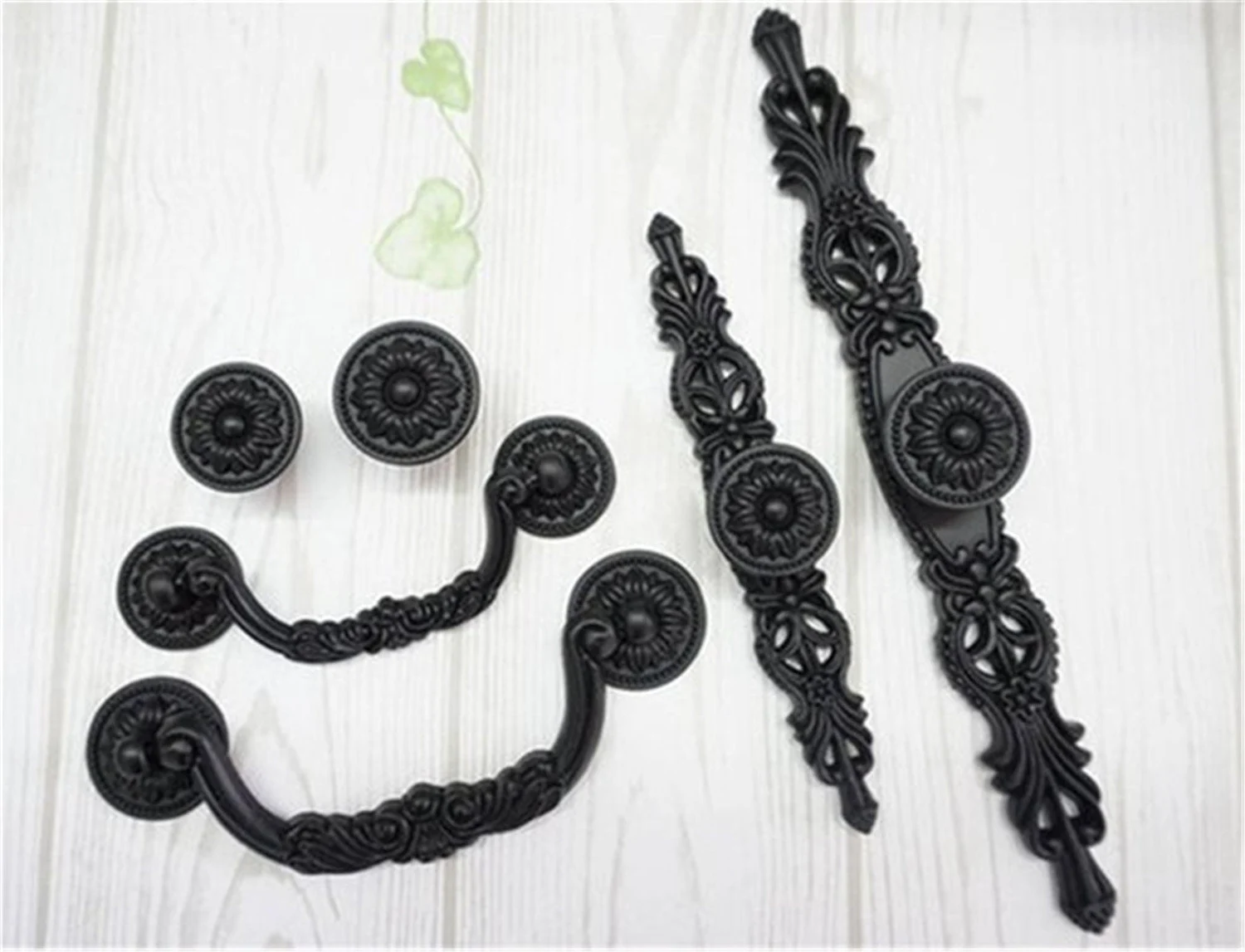

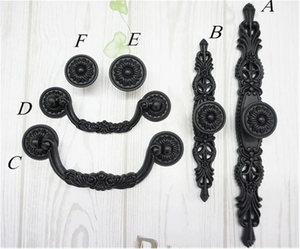

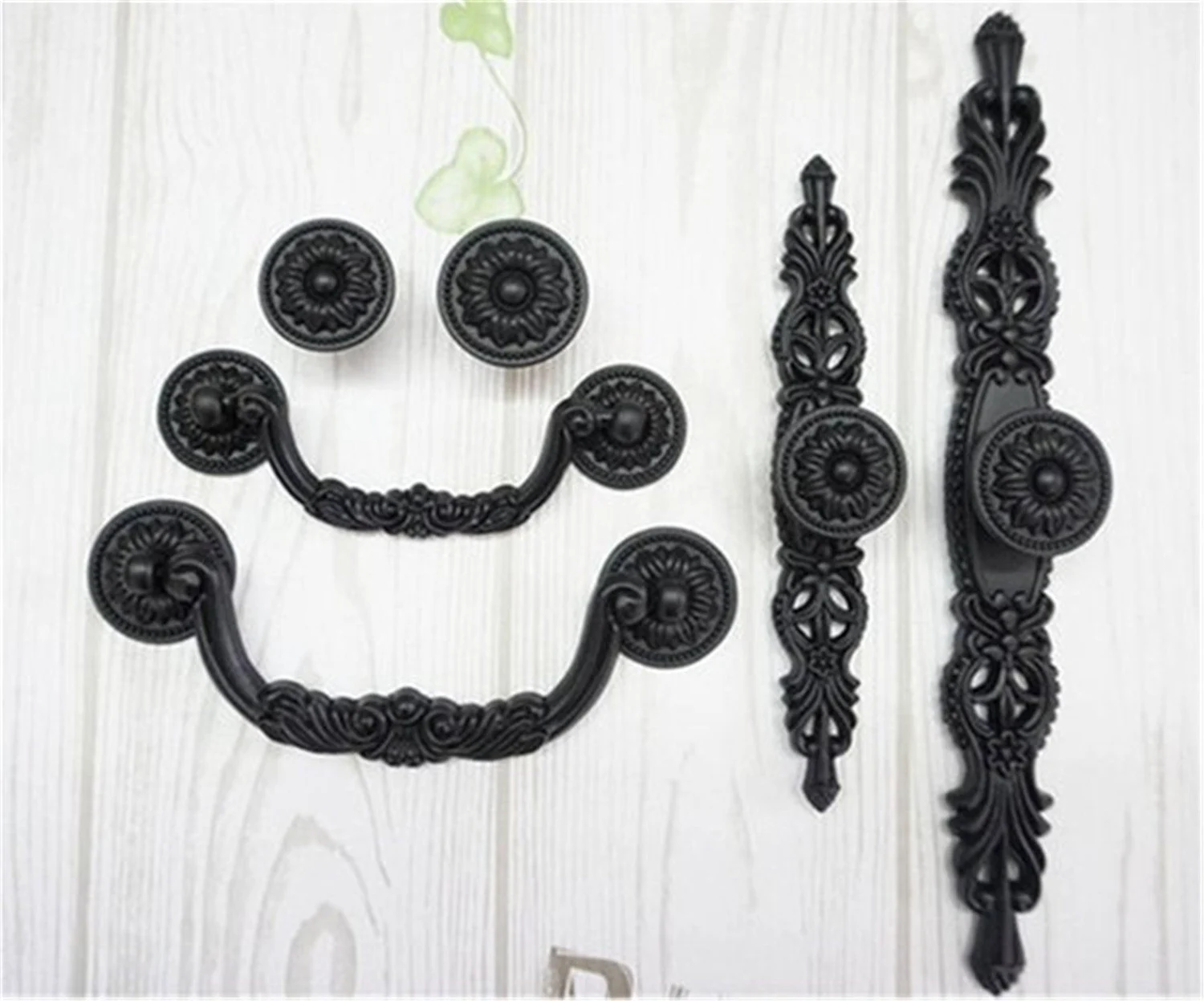

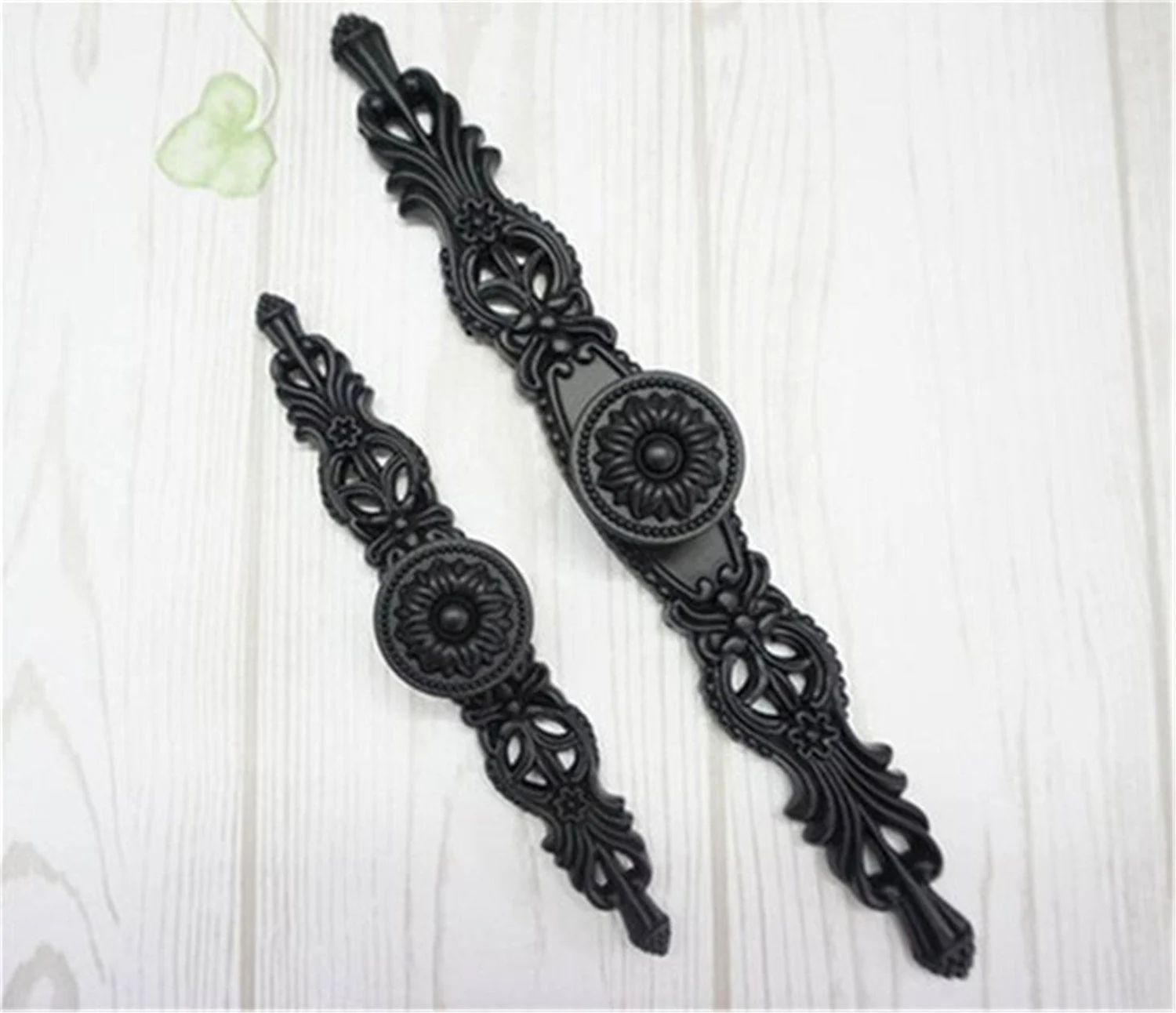

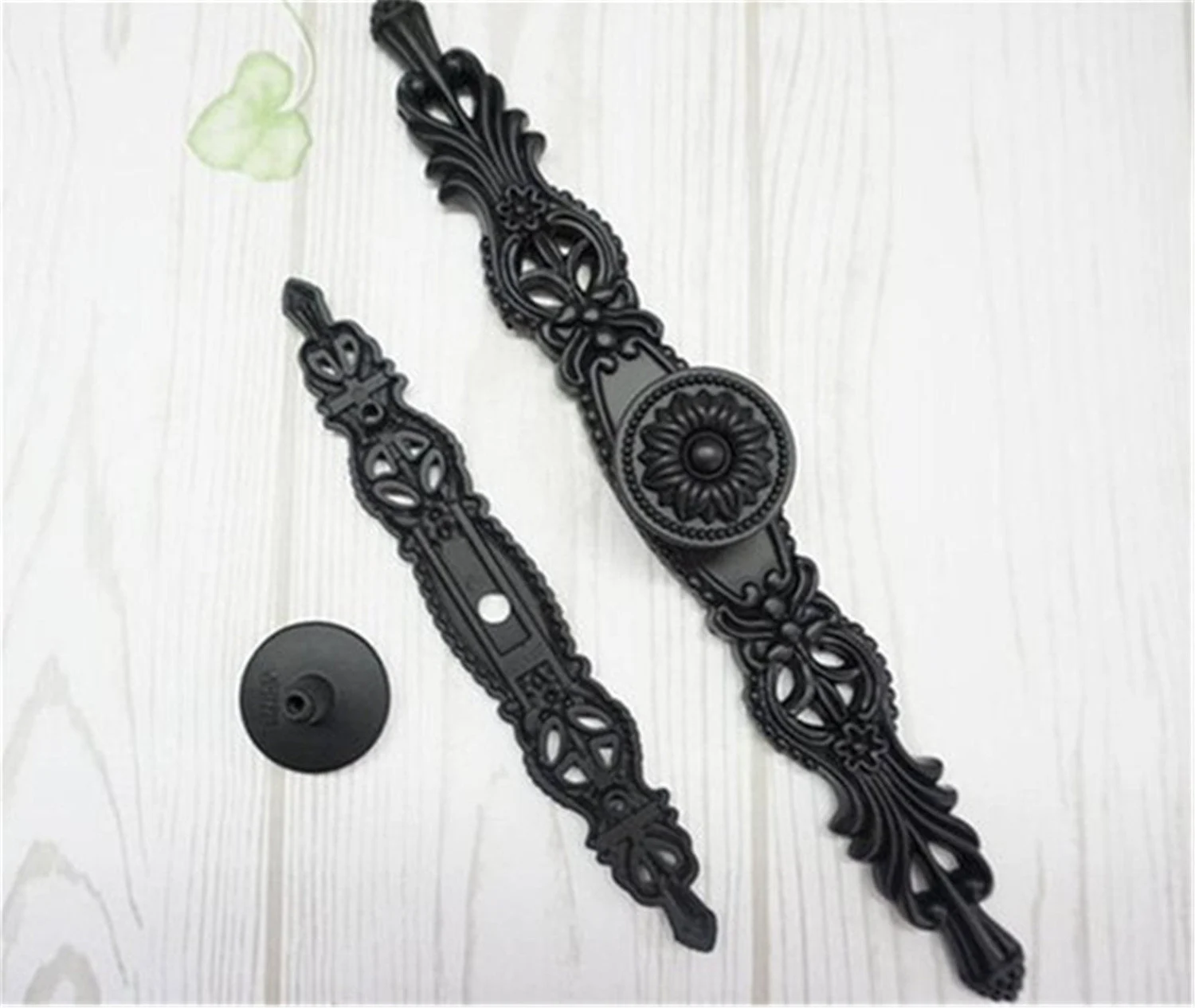

A - Larger Knob with Back Plate
Length: 10" (256 mm)
Width: 1.4" (35 mm)
Dia of knob: 1.4" (36 mm)
When installed the knob sticks out 1.1" (28 mm)
B - Smaller Knob with Back Plate
Length: 6.7" (170 mm)
Width: 1" (25 mm)
Dia of knob: 1.2" (32 mm)
When installed the knob sticks out 1.1" (28 mm)

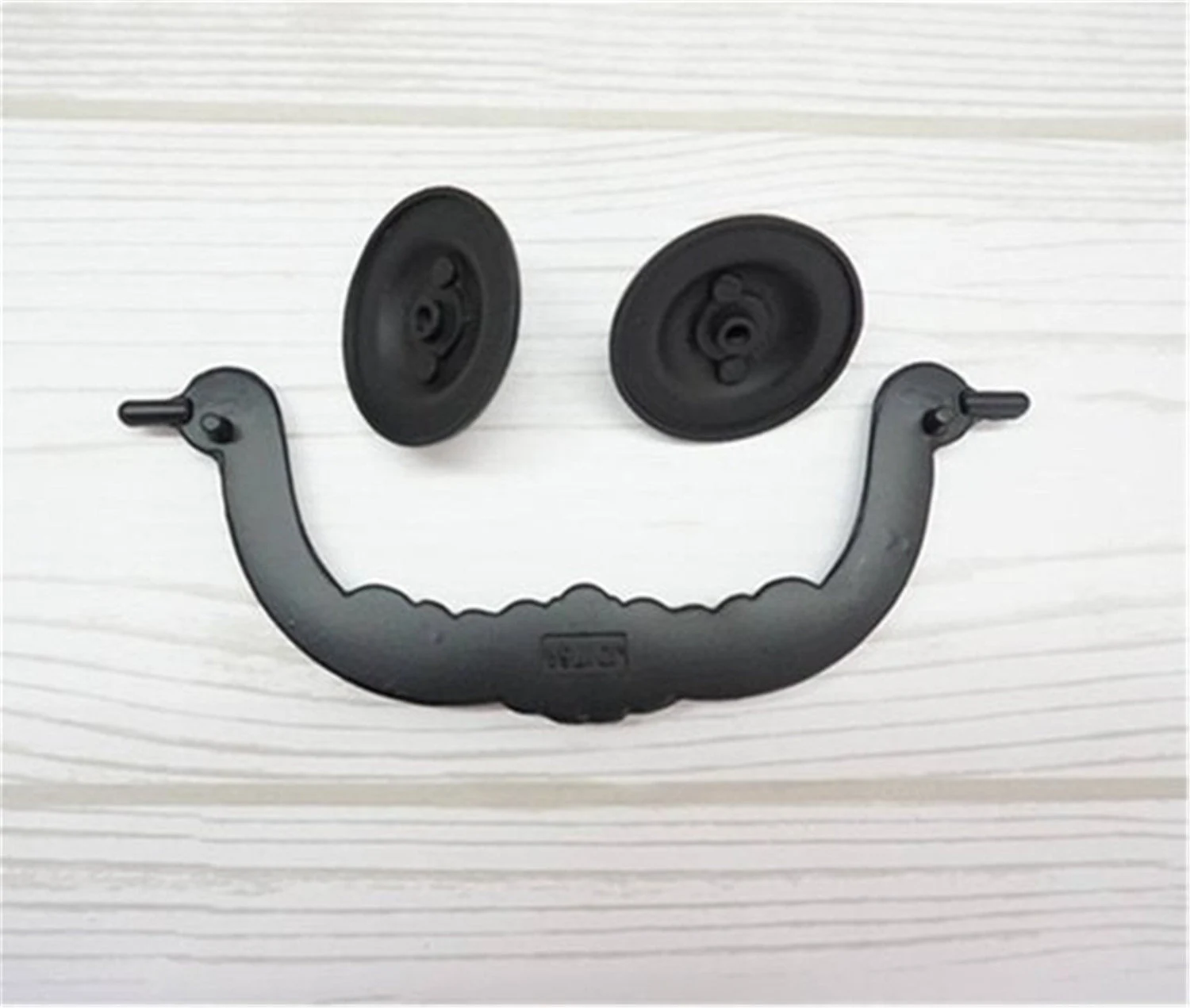

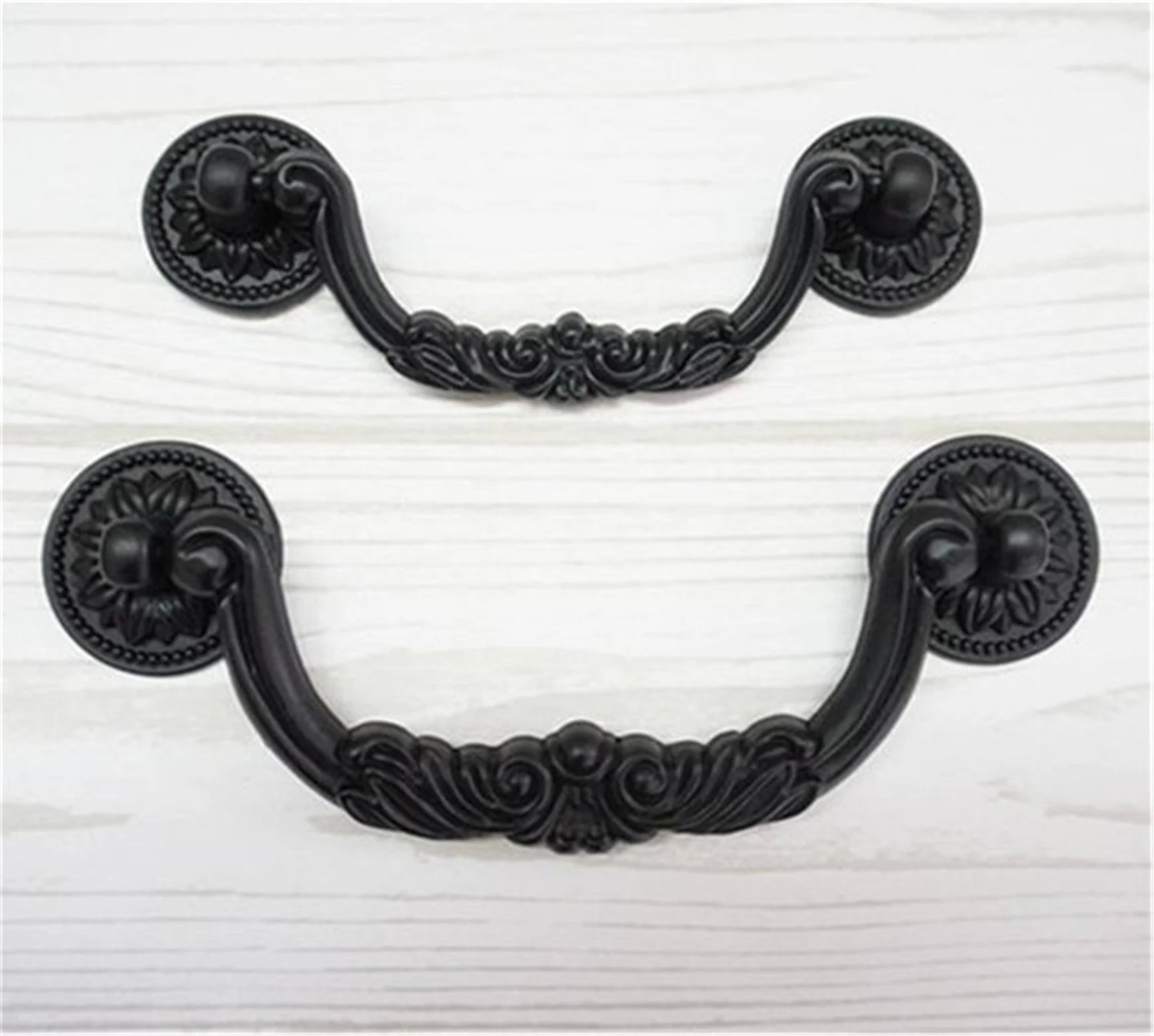

C - Larger Pulls --5.0"
Length: 6.4" (162 mm)
Width: 1.4 " (36 mm)
Hole spacing (center to center ) : 5" (128 mm)
When installed the knob sticks out 3/4" (17 mm)
D - Smaller Pulls --3.75"
Length: 5" (128 mm)
Width: 1.1" (32 mm)
Hole spacing (center to center ) : 3.75" (96 mm)
When installed the knob sticks out 3/5" (17 mm)

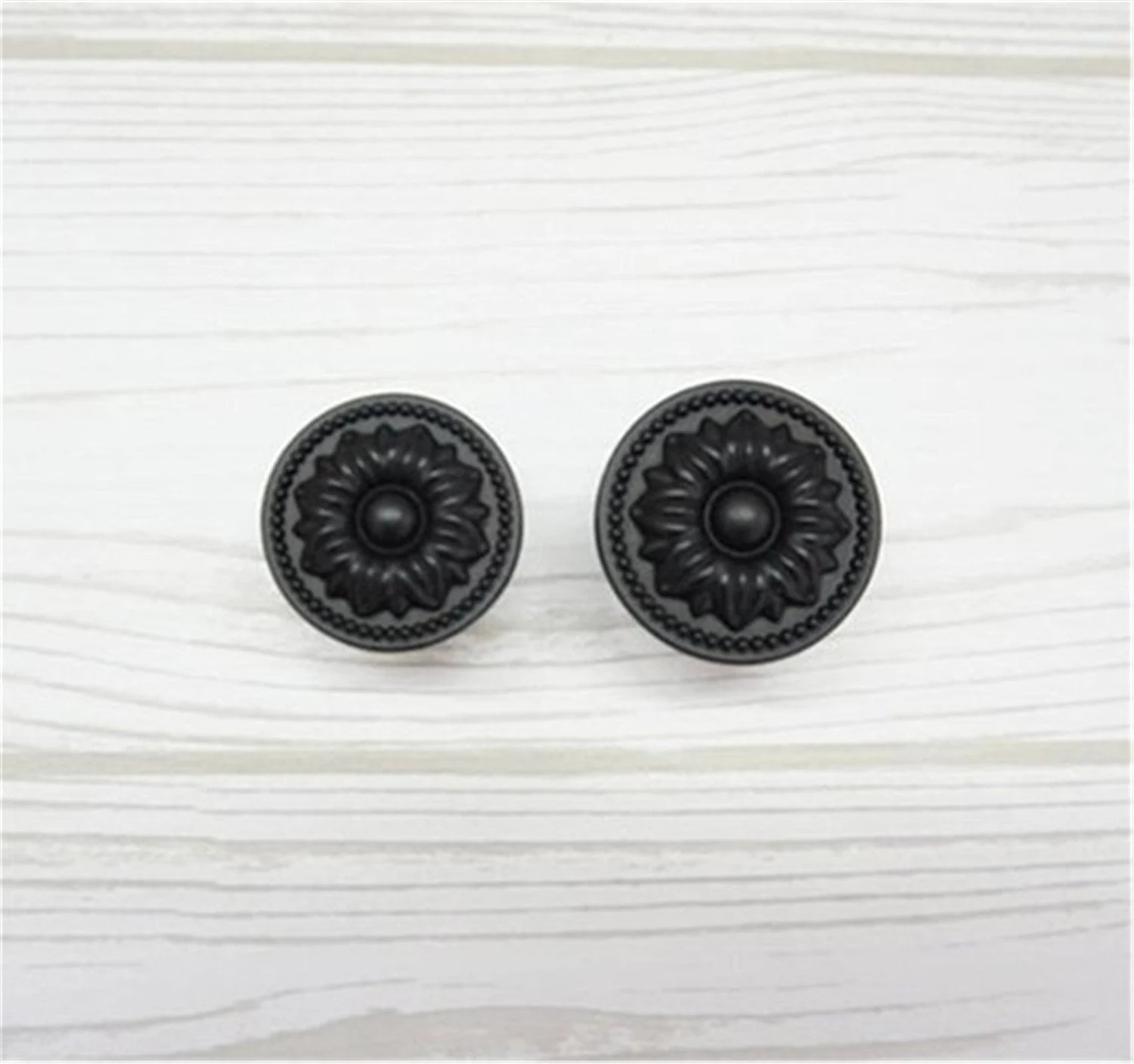

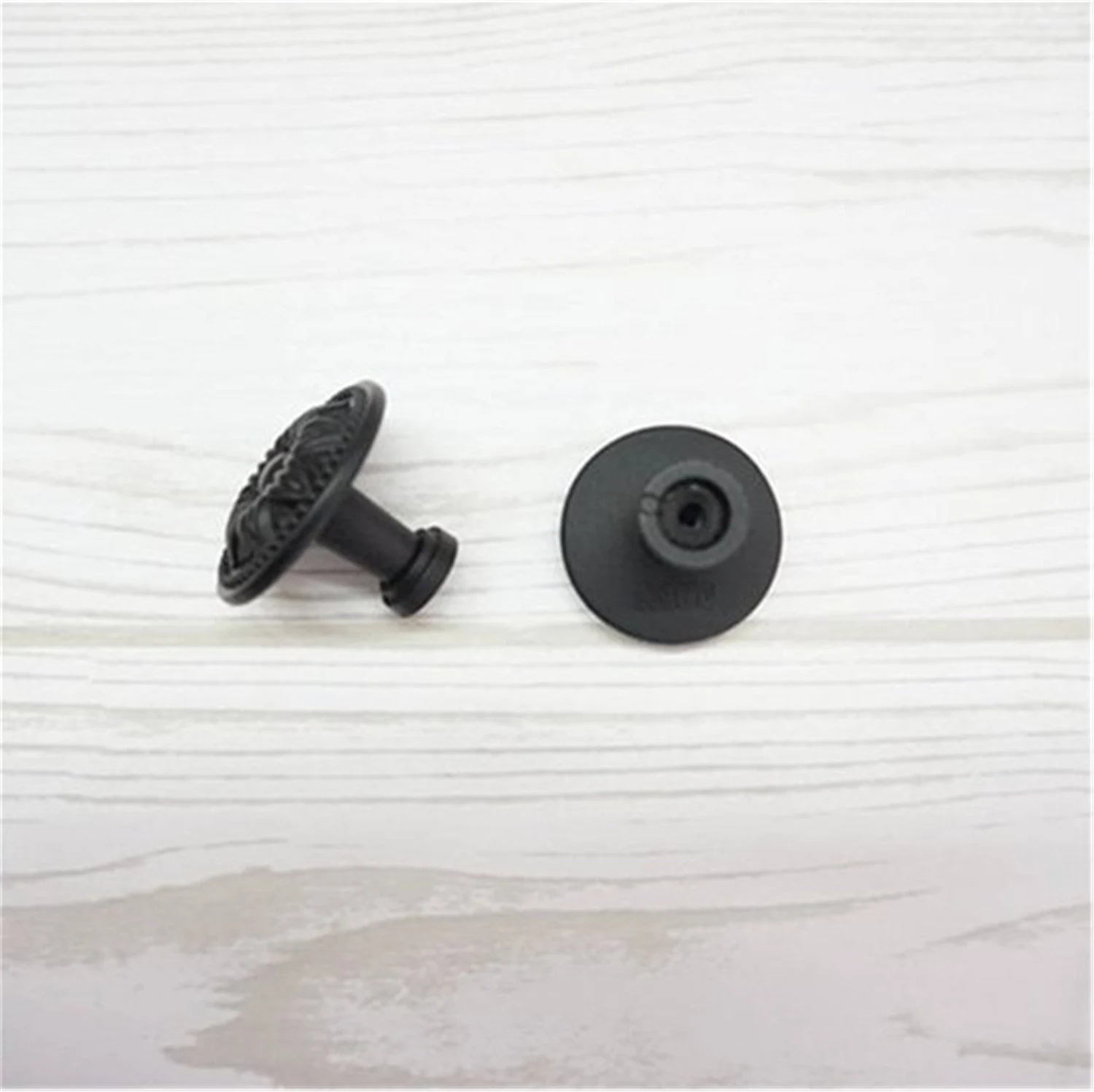

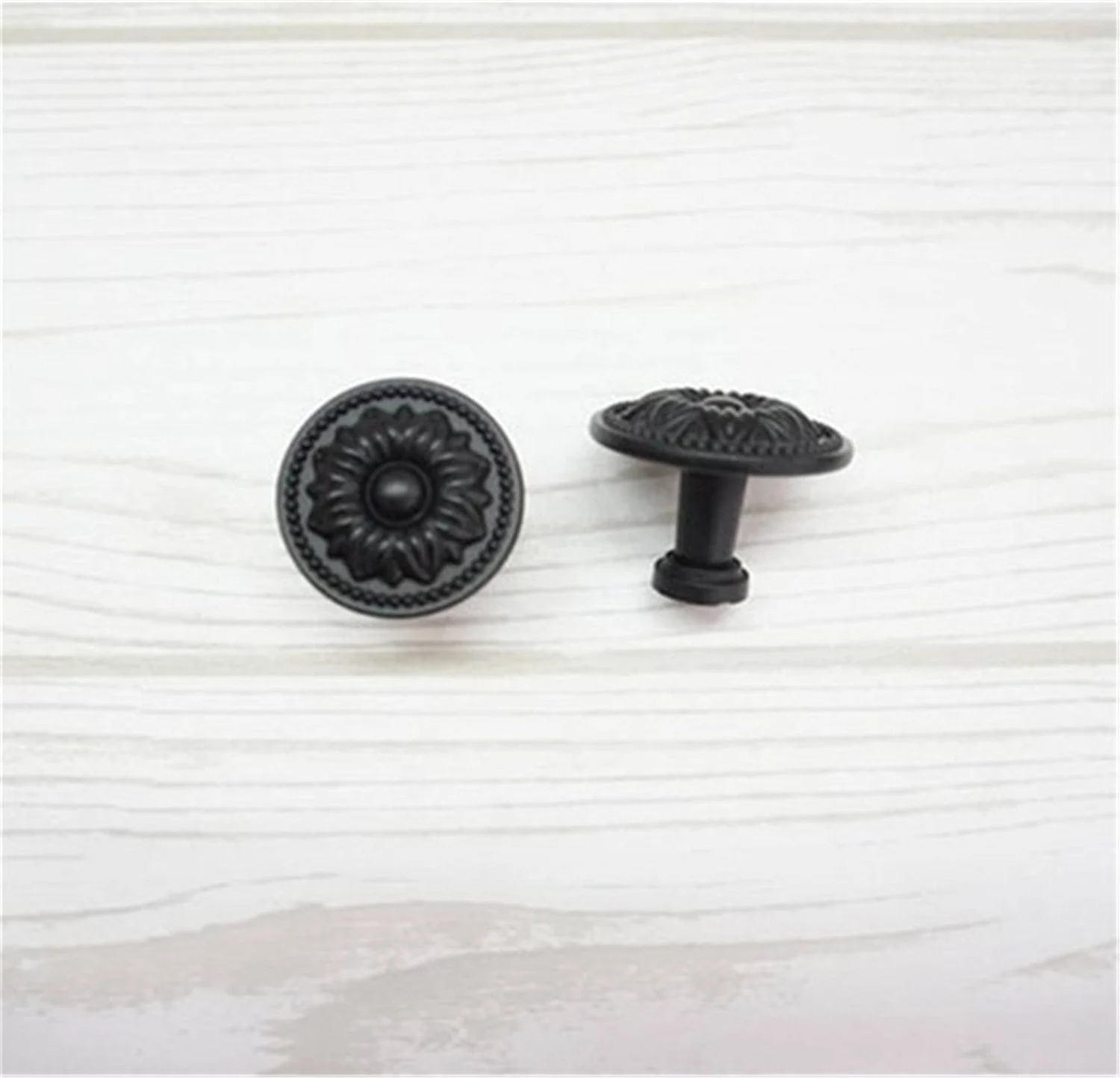

E - Larger Knobs -
Dia: 1.4" (35 mm)
When installed the knob sticks out 1" (26 mm)
F - Smaller Knobs -
Dia: 1.2" (30 mm)
When installed the knob sticks out 1" (25 mm)
Packing: 1piece into a polybag , screws included
Screws:
1.0’’ (25 mm) as default.
Screws are available in 0.79’’(20 mm), 1’’( 25 mm), 1.18’’( 30 mm), 1.38’’( 35 mm), 1.57’’( 40 mm), 1.77’’( 45 mm), 1.97’’( 50 mm).
If you have special requirements on screws, please feel free to let me know.
